Sheet Metal Forming Tools

With over 50 years of experience, the name Gebhardt stands for quality and reliability in tool making and equipment manufacturing. As a manufacturer of any kind of equipment, mainly sheet metal forming tools and equipment, the scope of production comprises the development and production of the series production tool, including try-out on our own press. Our scope of delivery comprises the following specifications:

Types of Tools

  • Follow-on composite tools
  • Transfer tools
  • Drawing tools
  • Multi-station dies
  • Punching tools
  • Prototype tools


  • Thread forming
  • Press fitting of nuts and bolts
  • Tox clinching

Performance Data

  • Size 6000 x 2000 per unit
  • Weight up to 32 tons per unit


  • Decorative parts
    • Interior
    • Exterior
  • Structure parts
  • Threaded tubes with integrated thread forming
  • Axle parts


  • Steel
    • High to ultra-high-strength steels
    • Dual-phase and complex-phase steels
  • Aluminium
  • Stainless steel

Process Chain


Our integrated process mapping starts with the first concept, the project development and the design of the component. We will then develop the subsequent series production process in detail together with you. By contributing our expertise at an early stage, we help to save costs and valuable time and guarantee the required quality.

For us, this means:

  • Drafting design suggestions and data models
  • Feasibility and cost analyses
  • FEM simulation


Based on the future series production process, we produce prototypes and pre-production parts.

As these components already have the properties of the future series parts, material properties, parts safety and their function can already be tested at an early stage.

Here, it is an essential aspect to determine the suitability for series production.


Series production tools

Among other areas, the tools manufactured by Gebhardt are used for manufacturing:

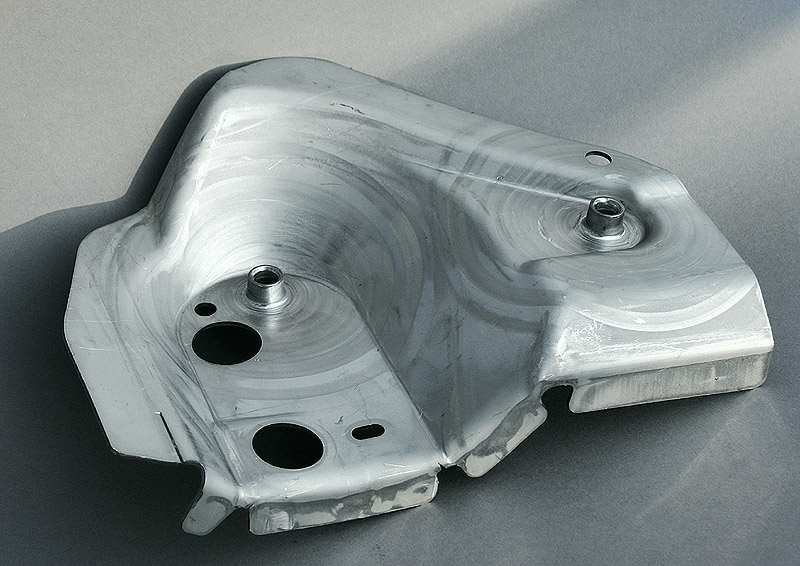

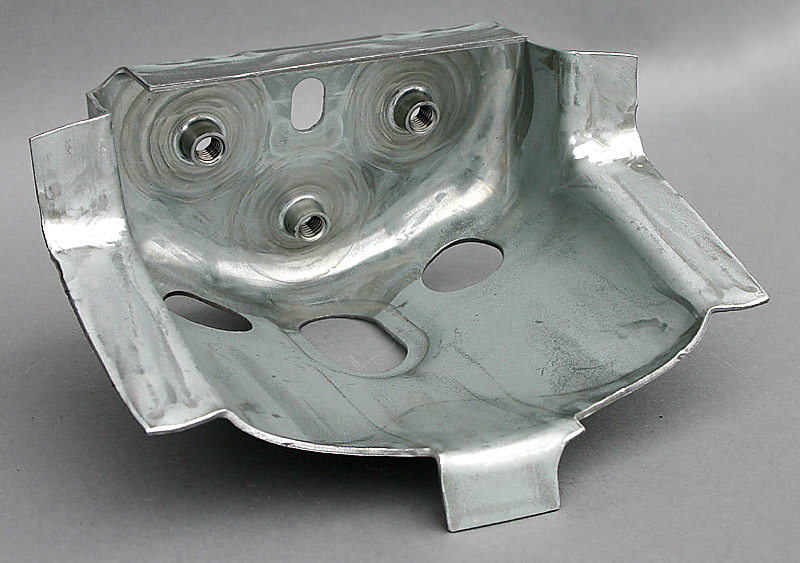

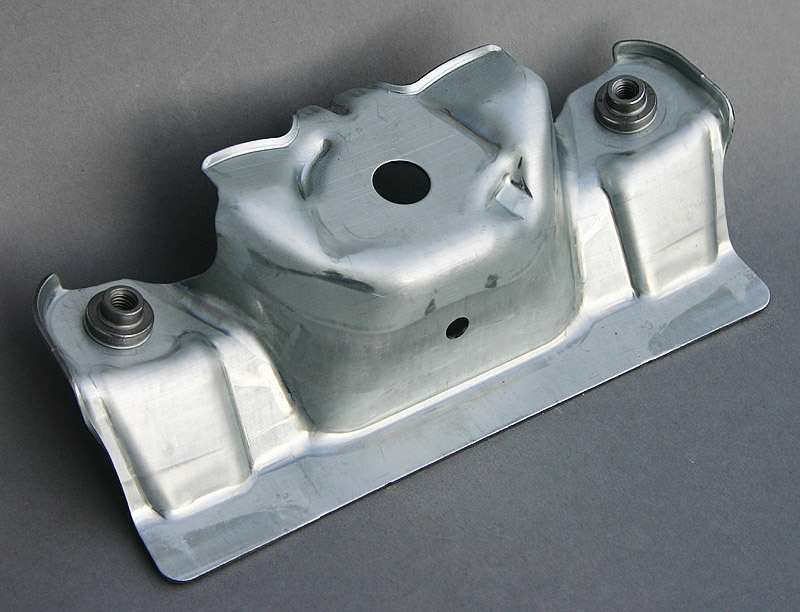

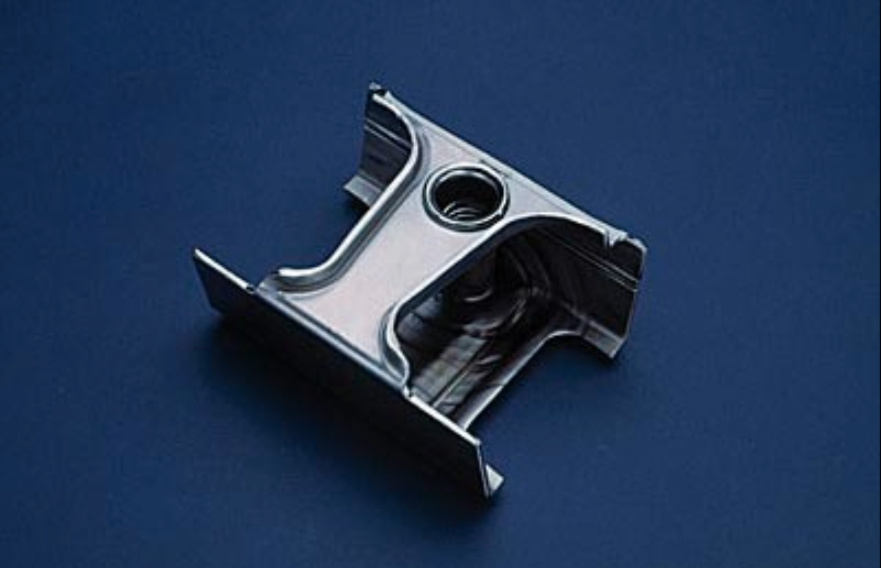

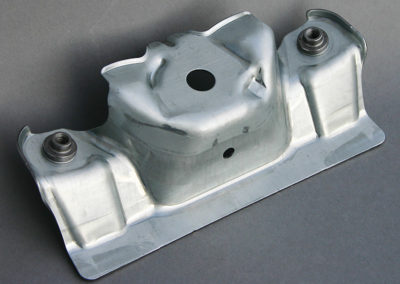

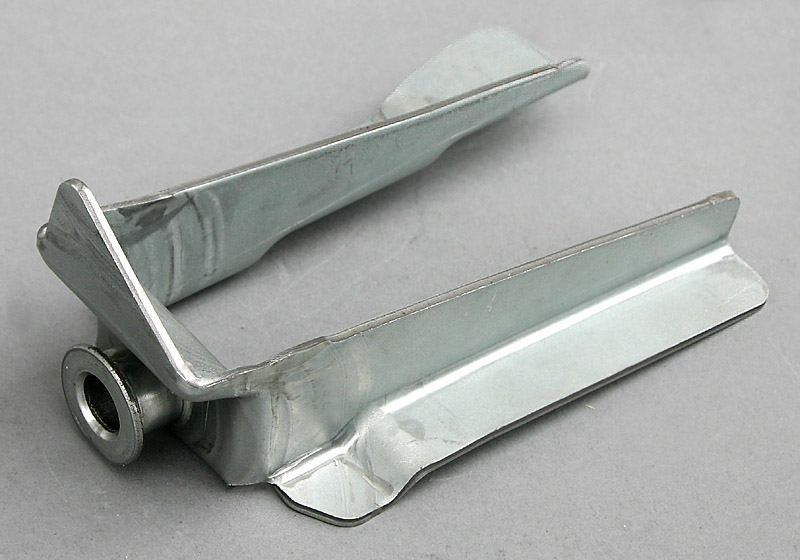

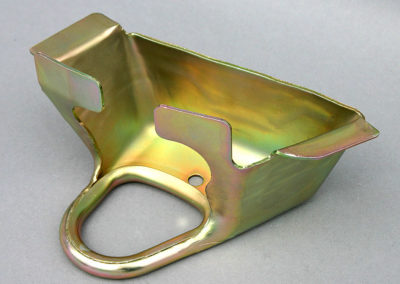

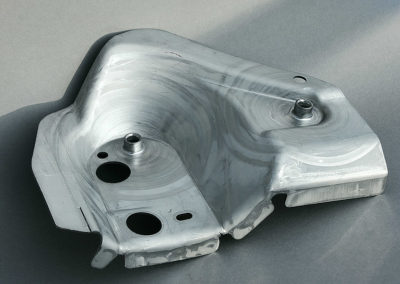

  • complex sheet metal formed parts for the body shell

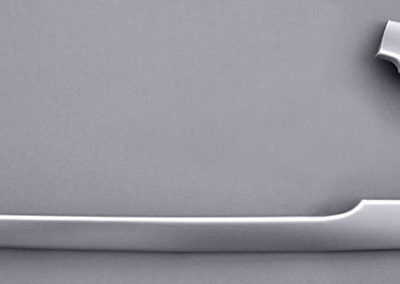

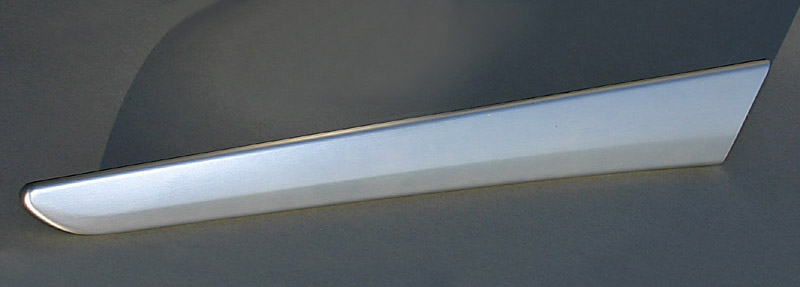

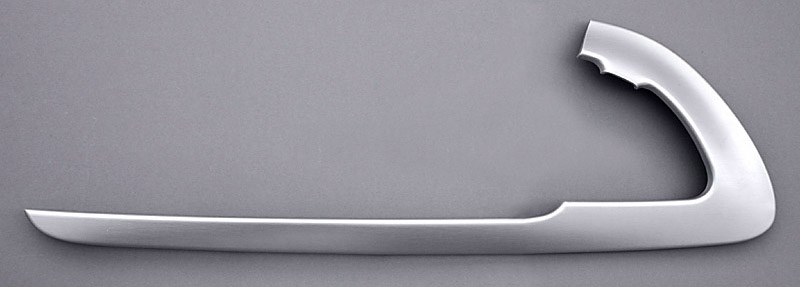

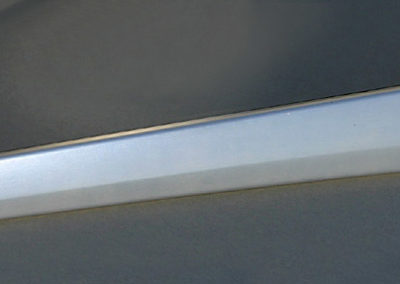

  • high-quality decorative parts inside and outside the vehicle

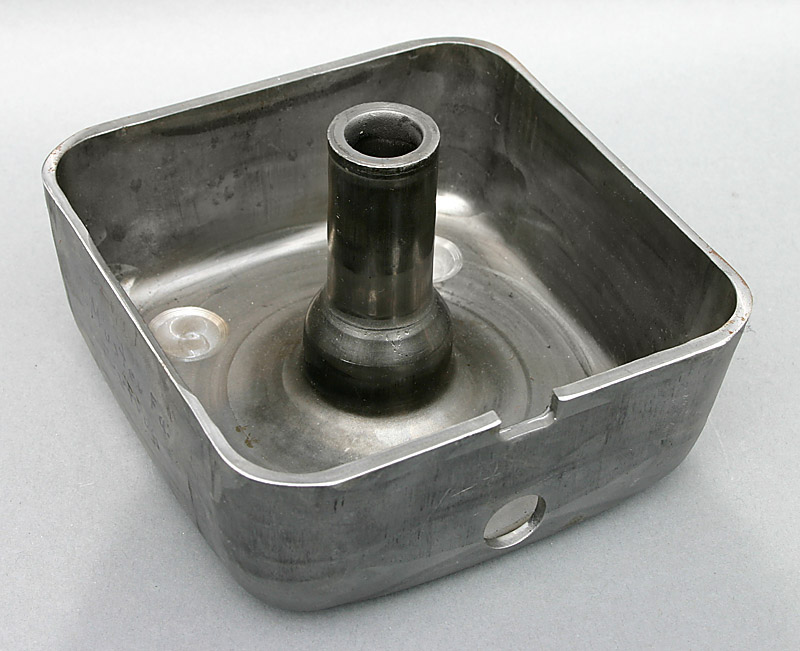

  • sophisticated components for engine, gearbox, restraint systems, etc.

Our program also includes tools for the electrical industry and for medical engineering.


  • Follow-on tools and multi-station dies up to a length of 9 m

  • Tool weight up to 32 tons



We are capable of trying out tools under series production conditions on our own try-out presses up to a tool length of 6,000 mm and a total pressing force of 15,000 kN.

With larger tools, we perform the try-out on the customer’s series production presses and guarantee a speedy and smooth start-up.


After-sales service

With our after-sales service we provide the following services within the scope of the process chain:

  • Change and data management
  • Production of replacement parts according to parts list
  • Repair service
  • Qualified technicians for on-site problem solving

Ensure the highest quality, show flexibility. You can rely on us, especially when problems occur and time is of the essence.
